Interactive Whiteboard Solutions

Interactive Whiteboard Solutions

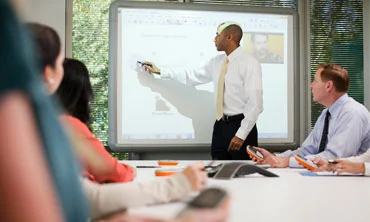

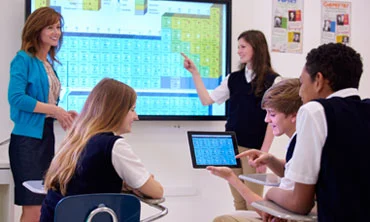

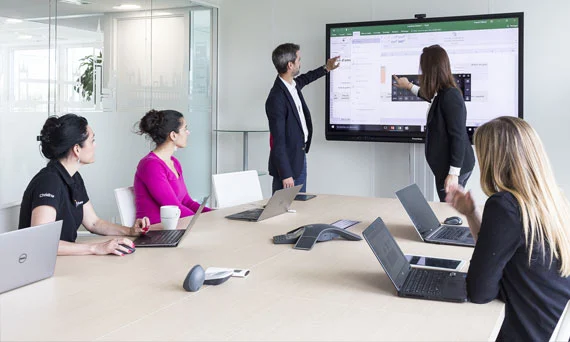

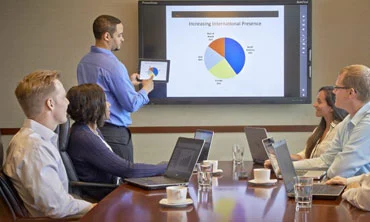

We offer a wide range of Interactive Display Panels that makes presentation development and delivery easy for you and your audience. Our solution is designed to make business meetings more effective; and collaboration in the classroom easier.

Features and Capabilities

Features and Capabilities

FEATURES AND CAPABILITIES #1:

Tools & Apps at the touch of your finger

Tools & Apps at the touch of your finger

Teachers may access the Unified Menu from the left, right and bottom of the screen, or via the Promethean Flame button on the console. Ease of access to the Unified Menu allows for fluid navigation between material and resources without breaking the flow of classroom instruction. The Locker may also be used to store frequently used applications, tools, and files.

FEATURES AND CAPABILITIES #2:

Write comfortably and naturally

Write comfortably and naturally

Our exclusive Vellum writing technology provides very precise touch detection for a natural writing experience. Using a pen or their fingertips, teachers and students may write swiftly and accurately without hindrance.

FEATURES AND CAPABILITIES #3:

New methods to engage

New methods to engage

The ActivPanel comes with a wide range of pre-installed applications that can be accessed instantly. With the Capture app, images can be captured, cropped, and opened in the Whiteboard easily for further annotation to increase classroom engagement.

FEATURES AND CAPABILITIES #4:

Create a limitless canvas

Create a limitless canvas

You can effortlessly transform your interactive display into a blank canvas with the Promethean Whiteboard app. Draw and write freely without running out of space, and save your work to ensure that you never lose a brilliant idea.

FEATURES AND CAPABILITIES #5:

Share work by mirroring displays

Share work by mirroring displays

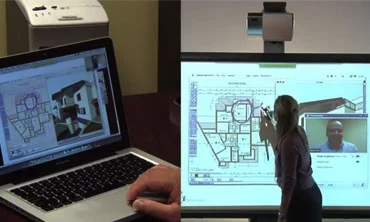

It’s simple to connect devices to the panel for mirroring. Teachers have complete freedom to walk about the classroom and interact with linked devices directly from the panel. A session may connect up to 39 devices, with a teacher being free to choose up to four devices to share information with at the same time.

GET STARTED
FEATURES ACTIVPANEL 9 STANDARD ACTIVPANEL 9 PREMIUM
DISPLAY
Available Sizes 65″ 4K, 75″ 4K, 86″ 4K 65″ 4K, 75″ 4K, 86″ 4K
Screen Type TFT LCD (Direct LED Backlight) TFT LCD (Direct LED Backlight)
Blue Light Reduction Yes Yes
Bonded Glass Yes Yes
Aspect Ratio 16:9 16:9
Display Area 65″ 4K: 1429 x 804 mm (56.3 x 31.7 in)
75″ 4K: 1652 x 930 mm (65 x 36.6 in)
86″ 4K: 1895 x 1066 mm (74.6 x 41.9 in)
65″ 4K: 1429 x 804 mm (56 3 x 31.7 in)
75″ 4K: 1652 x 930 mm (65 x 36.6 in)
86″ 4K: 1895 x 1066 mm (74.6 x 41.9 in)
LCD Viewing Angle 178° 178°
LCD Response Time 8 ms 8 ms
LCD Refresh Rate (Panel) 60 Hz 60 Hz
LED Lifespan 50,000 hours 50,000 hours
Contrast Ratio 5000:1 Dynamic 1200:1 Static 5000:1 Dynamic 1200:1 Static
Brightness 400 cd/m2 400 cd/m2
Ambient Light Sensor Yes Yes
Glass Hardness 9H (pencil), 7 (Mohs) 9H (pencil), 7 (Mohs)
Glass Type Heat tempered, Anti-Glare Heat tempered, Anti-Glare
INTERACTIVITY
Vellum Touch Technology Yes Yes
Continuous Touch Points 20 20
Touch Resolution 32768 X 32768 px 32768 X 32768 px
Response Time 10 ms s5 ms
Touch Accuracy 1 mm 1 mm
Tracking Rate 4m/s 4m/s
Scan Rate 200 Hz 200 Hz
Gestures and Edge Swipes Windows• supported Windows• supported
Eraser Included (Block Eraser) No Yes
Unique Pen IDs 1 2
Pen and Touch Differentiation Yes Yes
Palm Erase Yes Yes
Palm Rejection Yes Yes, writing and non-writing hand
Pens Included Yes, 2 Yes, 4
Pen Type Battery-less pen Battery-less pen
Pen Holder Integrated full-length pen tray Integrated full-length pen tray
Pen Tip Diameter 3mm 3 mm (Eraser 7 mm)
Classroom Essential Apps Including Whiteboard, Annotate, Timer, Spinner, Screen Capture, Screen Share, Browser, PDF Reader, Media Player, Screen Recorder Including Whiteboard, Annotate, Timer, Spinner, Screen Capture, Screen Share, Browser, PDF Reader, Media Player, Screen Recorder
Compatibility Windows• 7 to 11; Mac os• 10.8 to 10.11; macos• Sierra 10.12.1 or later; Linux• Ubuntu 20.04 LTS; Chrome OS™ Windows® 7 to 71; Mac os• 70.8 to 10.11; macOS® Sierra 10.12.1 or later; Linux® Ubuntu 20.04 LTS; Chrome OS'”
COMPUTING
Operating System ActivPanel OS ActivPanel OS
RAM 4 GB 6.5 GB
Internal Storage 32 GB 64GB
CPU ARM CORTEX-A73 x 4 ARM CORTEX-A73 x 4
GPU ARM CORTEX-A73 x 4 ARM CORTEX-A73 x 4
ActivSynC” No Yes
Trusted Platform Module Yes Yes
Cloud Based User Profiles Yes Yes
AUDIO
Dual Front-facing Speakers 2x 15W 2x 18W
Subwoofer No 1 X 15W
Microphone Array No Yes
CONNECTIVITY
OPS Slot 1 1
HDMI In (Rear) 2(2.0) 2 (1 X 2.0, 1 X 2.1)
HDMI In (Front) 1 (2.0) 1 (2.0)
Display Port 1 (1.2) 1 (1.2)
USB-A 2.0 (Rear) 1 1
USB-C 3.2 (Rear) 1 (60 W Power Delivery) 1 (100 W Power Delivery)
USB-B 3.0 (Touch, Front) 1 1
USB-B 3.0 (Touch, Rear) 3 3
USB-A 3.0 (Front) 2 2
USB-A 3.0 (Rear) 2 2
MicroSD Slot Yes Yes
LAN In (RJ45) 1 Gbps 1 Gbps
LAN Out (RJ45) 1 Gbps 1 Gbps
Wake-on-LAN Yes Yes
Wi-Fi (Client) IEEE 802.11 a/b/g/n/ac/ax,
Wi-Fi 6 and dual band supported
IEEE 802.11 a/b/g/n/ac/ax,
Wi-Fi 6 and dual band supported
Bluetooth 5.0 5.0
HDMI Out 1 (2.0) 1 (2.0)
VGA In 0 1
PC Audio (3.5 mm) 0 1
AV-In (3.5 mm) 1 1
Mic(3.5 mm) 1 1
Audio Out (3.5 mm) 1 1
RS-232 1 1
Proximity Sensor for Warm Boot No Yes
NFC (Near-field Communication) No Yes
DOWNLOAD FULL SPECIFICATION DATASHEET DOWNLOAD FULL SPECIFICATION DATASHEET
FEATURES ACTIVINSPIRE CLASSFLOW
ACCESSIBILITY
Available Offline Yes Y (ClassFlow Desktop)
Available Online No Yes
PRESENTATION TOOLS FOR STUDENT ENGAGEMENT
Send Text-based Content to Student Devices Yes Yes
Send Media-rich Content to Student Devices No Yes
Send Students’ Work to Display from Teacher’s Mobile Device No Yes
Instant Polling Yes Yes
Assessment in Class Yes Yes
Assessment at Home No Yes
Instant Whiteboard Yes Yes
Annotation Yes Yes
Handwriting Recognition Yes Yes (ClassFlow Desktop)
Display Multiple Lesson Pages Simultaneously No Yes
Supports Multi-touch Yes Yes
Math Tools Yes Yes
Translucency Slider Yes No
RESOURCES
Unlimited Cloud Storage No Yes
Integration with Cloud Service (Dropbox, Google Drive, OneDrive) No Yes
Importing Flipcharts NA Yes
Importing PowerPoint, PDF, Smart Notebook Yes Yes
Lesson Repository Yes Yes
Sell/Buy Original Lessons No Yes
DATA COLLECTION TOOLS
Saving & Sharing of Instant Whiteboard Yes Yes
Polling Results Yes Yes
Assessment Results Yes Yes
Exporting Results to Excel Yes Yes
TEACHER MANAGEMENT TOOLS
Student Grouping within Classes No Yes
Remote Control of Lessons No Yes
Teacher Lock for Lessons Yes No
Student Badging No Yes
Class Web Page No Yes
Teacher Posts No Yes
STUDENT MANAGEMENT TOOLS
Student Login No Yes
Assignments No Yes
Digital Notebooks No Yes
Badges No Yes
Unlimited Cloud Storage No Yes
